Jinko Tiger Neo 570W Bifacial Solar Panel — Pallet of 30 (17.1kW)

30 × Jinko Tiger Neo 570W Bifacial — Brand New Overstock

A full pallet of 30 unused Jinko Tiger Neo JKM570N-72HL4-BDV bifacial modules — 17.1kW of generating capacity for £1,200 ex VAT. That’s £40 per panel, or £70 per kilowatt.

These are not recycled, refurbished or ex-site panels. They are unused manufacturer overstock — surplus stock that never made it to an installation. Still in original packaging, never wired, never mounted, never weathered.

What 17.1kW gets you

A single pallet is enough to cover most of the daytime demand on a working farm, a commercial unit or a large rural property. At £70 per kilowatt of panel capacity, it is a fraction of what the same array would normally cost to specify.

Why this panel

The Tiger Neo is Jinko’s N-type TOPCon platform, the technology that replaced older P-type PERC modules across most of the commercial market.

• 22.07% module efficiency
• 0.40% annual degradation — 87.4% of rated output at year 30
• −0.29%/°C temperature coefficient, so less loss in summer heat
• 0 to +3% power tolerance — you never receive less than 570W
• Anti-PID process control and Jinko’s Hot 2.0 low-LID/LETID technology

Bifacial dual glass

Both faces generate. The rear captures reflected light at 80% (±5%) of front-side efficiency, producing output a conventional panel cannot.

Best suited to:

• Ground-mount arrays over grass, gravel or concrete
• Agricultural field arrays and barn roofs
• Commercial flat roofs with light-coloured membrane
• Solar carports and canopies
• Vertical and solar fence installations

Worth knowing: on a standard pitched roof there is no reflected light reaching the rear glass, so bifacial gain is effectively zero. These remain excellent panels on a pitched roof — you just won’t see the bifacial benefit. At 2278mm and 31kg each they are large-format commercial modules, so check your mounting and access before ordering.

The dual-glass construction (2.0mm anti-reflective front, 2.0mm heat-strengthened rear) replaces the polymer backsheet used on conventional panels, giving better resistance to abrasion, moisture ingress, ammonia and mechanical stress.

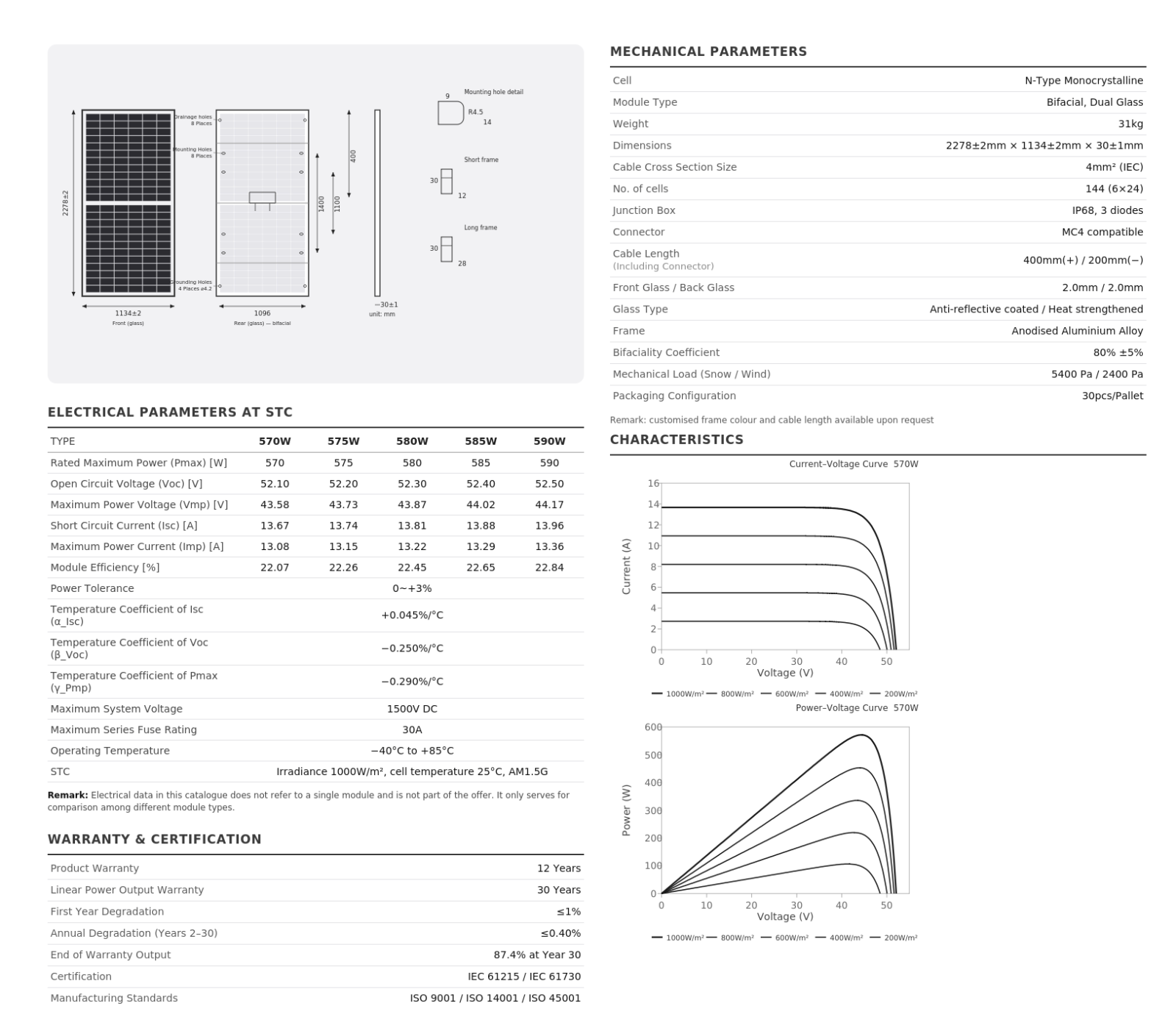

Full specification

String sizing reference

Calculated from the −0.25%/°C Voc coefficient at a −10°C UK design temperature:

• Voc at −10°C: 56.66 V per module
• Max modules per string, 1000 VDC inverter: 17
• Max modules per string, 1100 VDC inverter: 19
• Max modules per string, 1500 VDC inverter: 26

Run your own calculations against your specific inverter and local design temperature. These figures are a reference, not a design.

Delivery

Two delivery options are available. Each has different unloading requirements — please read before ordering.

Pallet delivery

• A forklift or telehandler is required to unload. A full pallet weighs approximately 955kg and cannot be unloaded by hand.
• Kerbside delivery only, by tail-lift vehicle.
• We cannot deliver to addresses without access for an 18-tonne lorry.
• If you do not have lifting equipment on site, please arrange it before ordering.

Van delivery

Available on request as an alternative to pallet freight. Panels are delivered loose rather than palletised.

• You must provide sufficient manpower to unload. Our driver cannot unload the panels for you.
• Each panel weighs 31kg and measures 2278 × 1134mm — a genuine two-person lift. Please have at least two able people available at the delivery address.
• You’ll also need somewhere to set the panels down safely as they come off the van.
• Handle by the frame only. Never lift or lean a panel by the glass.
• If nobody is available to unload on arrival, the delivery will fail and a re-delivery charge will apply.

Collection

Collection from our depot is available at a discount. Please bring suitable lifting equipment and enough people to load safely.

General

• Delivery is calculated at checkout based on your postcode.
• Lead time: 2 working days from cleared payment.

What’s included

• 30 × JKM570N-72HL4-BDV modules
• Original manufacturer packaging
• Delivered shrink-wrapped and strapped on a standard pallet
